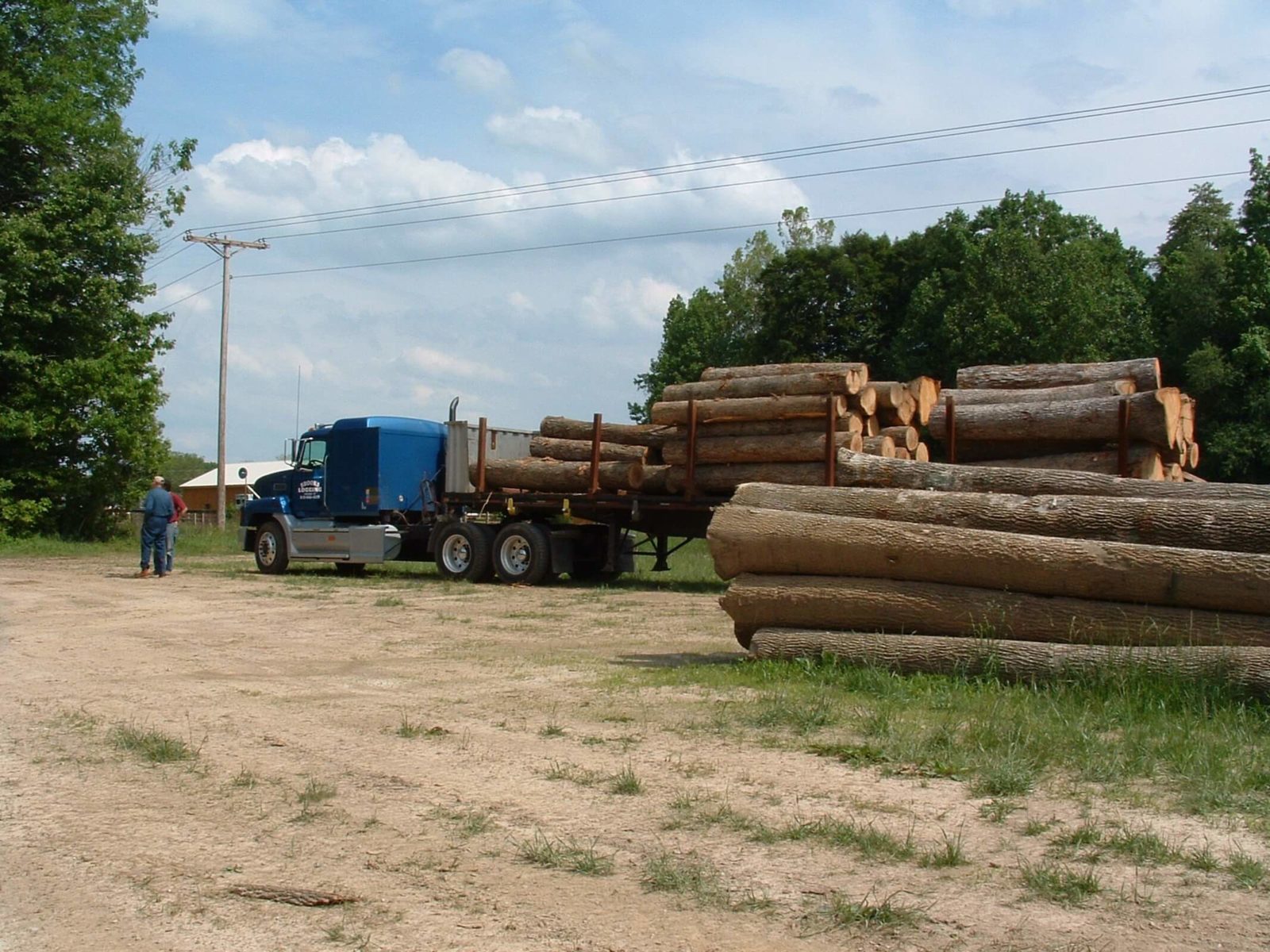

Expert custom processing of your logs. Minimum charges help to cover our cost to keep your materials segregated and accounted for during all points in the manufacturing process.
Custom services are limited to processing of your logs & lumber manufactured by Tiny Timbers only.

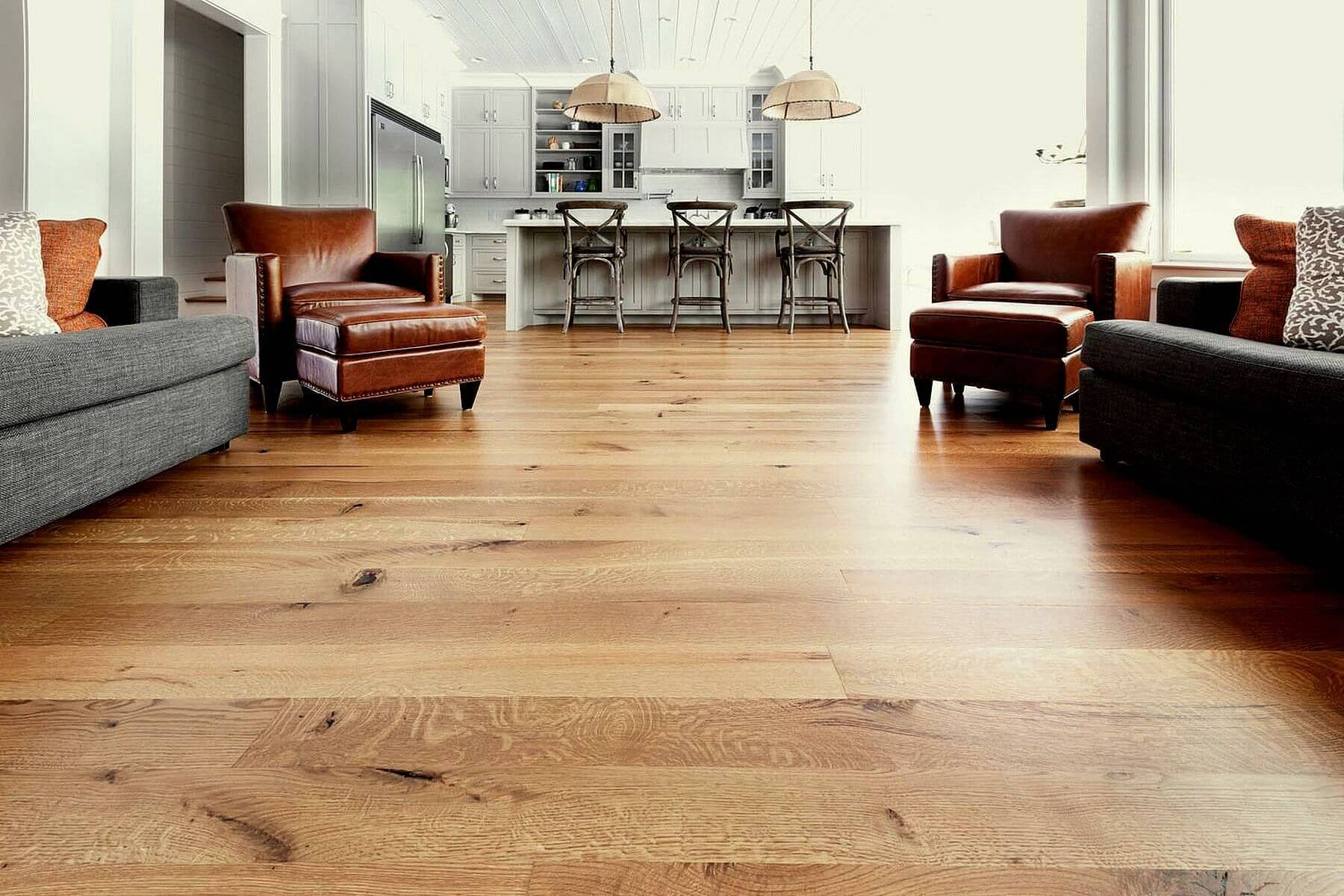

This estimate assumes you are starting with 1,000 board feet of well-manufactured and properly kiln dried random width grade lumber. Detailing all processes, this estimates the typical yields and cost to manufacture a 3-4-5″ random width plank floor.
| Manufacturing Processes | Yield Factors | per 1,000 bf |
|---|---|---|
|

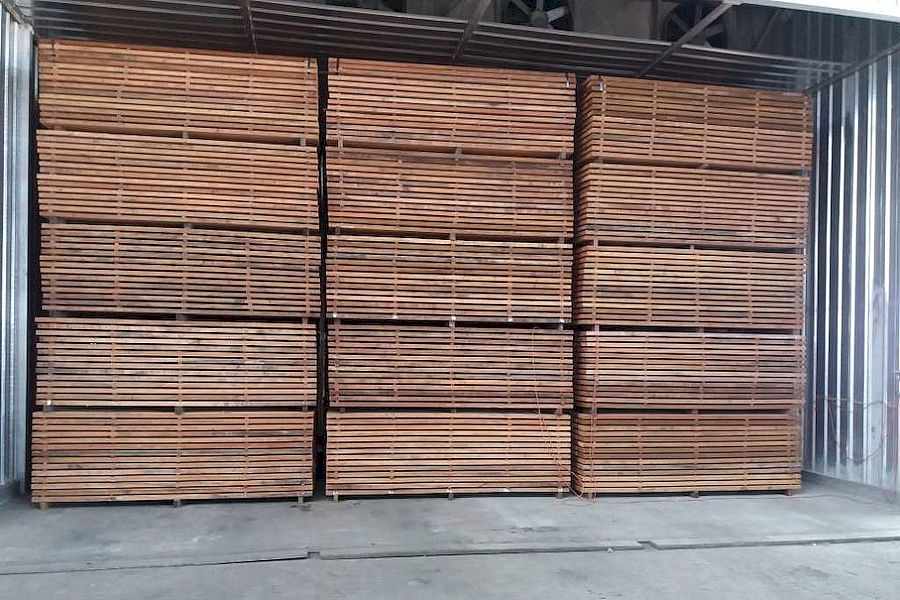

Kiln Drying (assuming starting with logs or green lumber) |
7% waste |
70 |
|
Straight Line Rip 1-Edge |
15% waste |
150 |
|
Straight Line Rip 2nd Edge (3-4-5″ random widths) |
15% waste |
150 |
|
End Trimming (Excludes defecting for grade or optional end matching) |
5% waste |
50 |
|
Total Estimated Waste Factor |
42% waste |
420 |
|
Total Estimated Net Yield in Square Ft (excludes optional end matching) |
58% net yield |
580 sf |

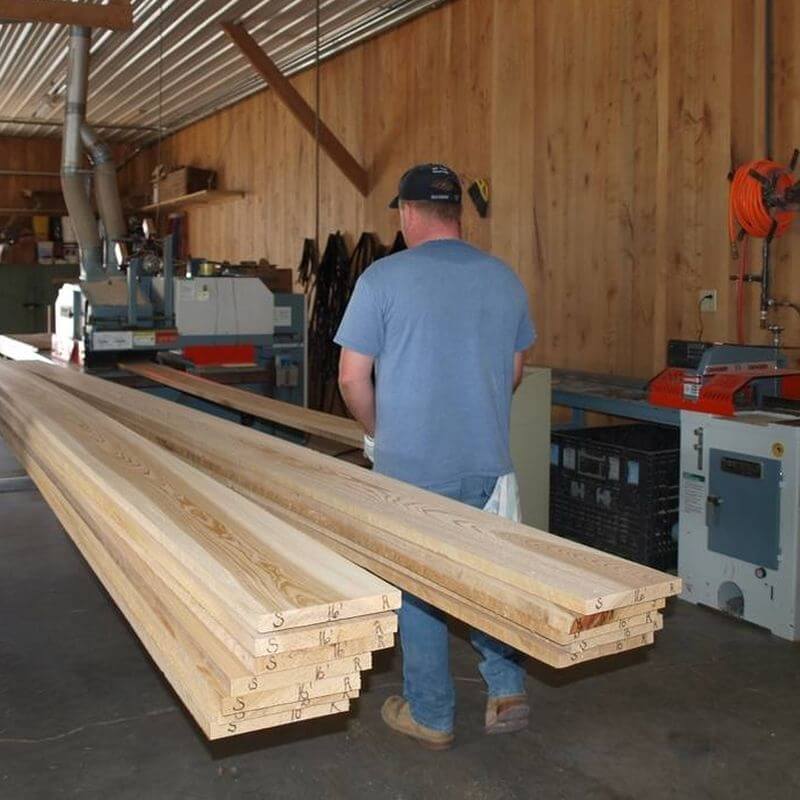

Laser line 8' Glue Line Quality up to 3" thick (10-15% average surface coverage waste factor)
Laser Line Optimizing Gang Rip Saw up to 4" thick (25% random widths to 50%+ single widths average surface coverage waste factor)

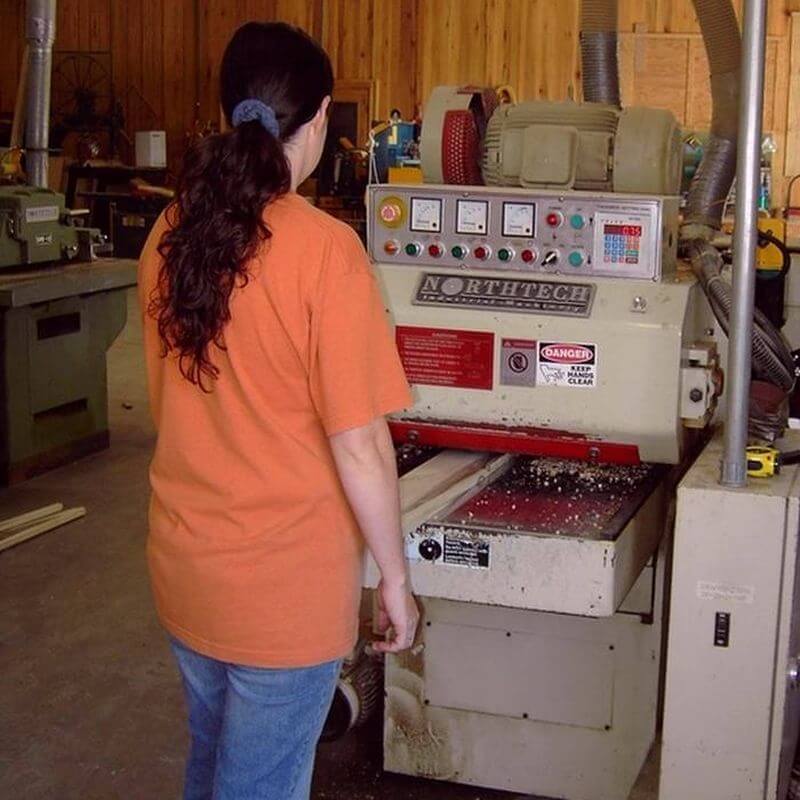

Finish Planing Services up to 3/8" per single pass in dimensions from 1/2" to 8" in thickness and up to 24" wide
Straight Resawing Service thickness 1/2" minimum, 12" wide x 12" high maximum. For Resaw on Bevel (custom angle) ... Add $100 Setup Fee
Includes all ripping, planing and molding processes. Dimensions up to 3" thick and 9" wide. Excludes custom laminations and custom tooling, if required (30-50% average waste factor) ... Add $100 Setup Fee on Patterned Profile Orders < 500 Square Feet
Concealed tongue & groove on the plank ends. Available only on standard 3/4" thick T&G planks. End matching eliminating the need to break the joints on standard framing or to face nail (5-10% average waste factor)
Includes all ripping, planing and molding processes (30-50% average waste factor) ... Add $100 Setup Fee per Matched Trim Order < 500 Lineal Feet
We will unload your materials during business hours with our loader. Stack your lumber on bolsters or 4x4's and position your load so we can reach it with 4' forks. Alternatively, you are welcome to safely unload your materials on your own. This charge only applies if you require specialized equipment or assistance in hand-unloading your materials
Applies if your material is required or requested by you to be custom sorted at any point in the manufacturing processing, including dimensional, length or grade sorts, split orders or other client requested specifications
Now, lets apply the cost to process this sample order:
| Cost of Manufacturing Processes | Unit Cost | x 1,000 bf |
|---|---|---|
|

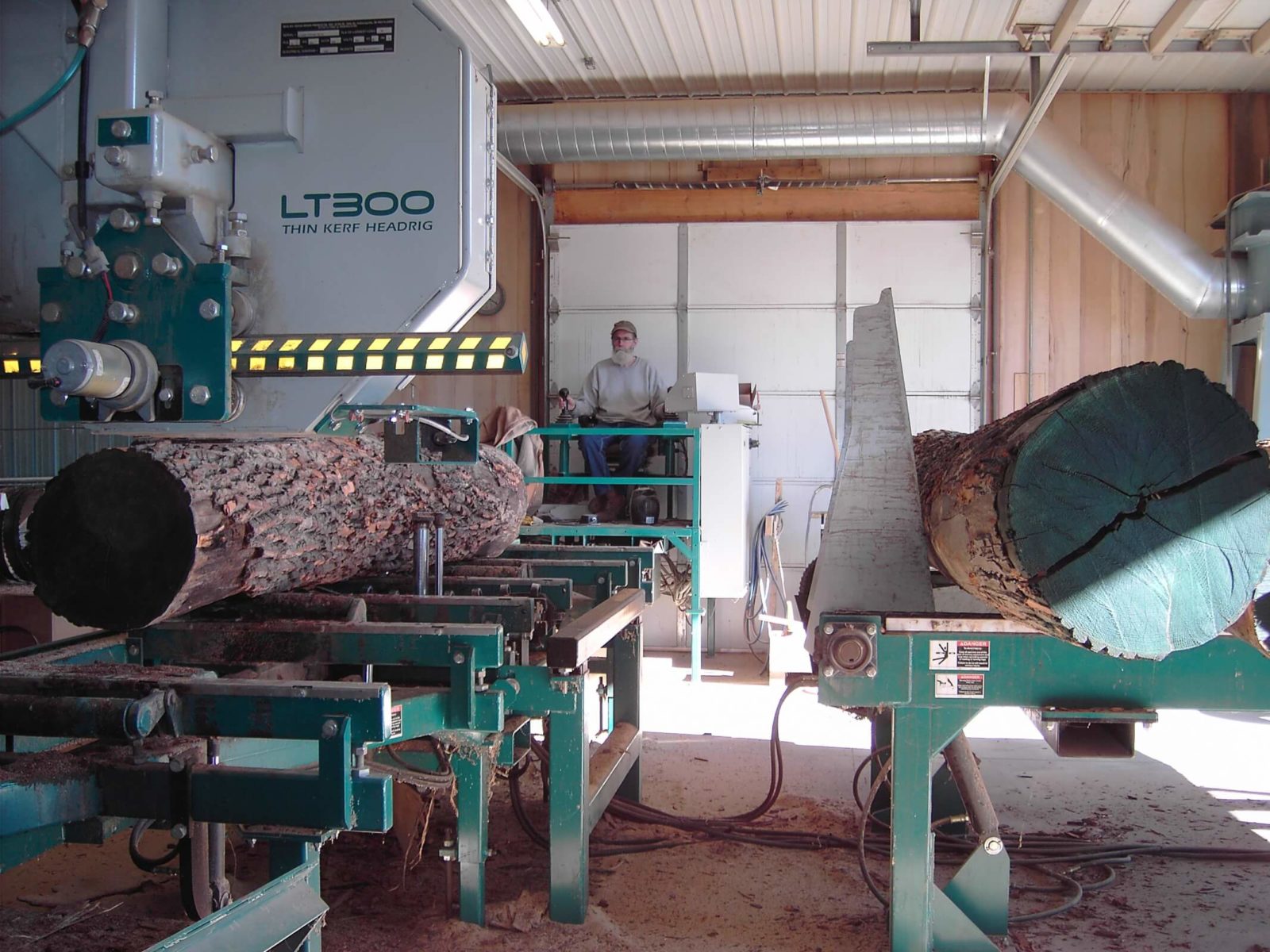

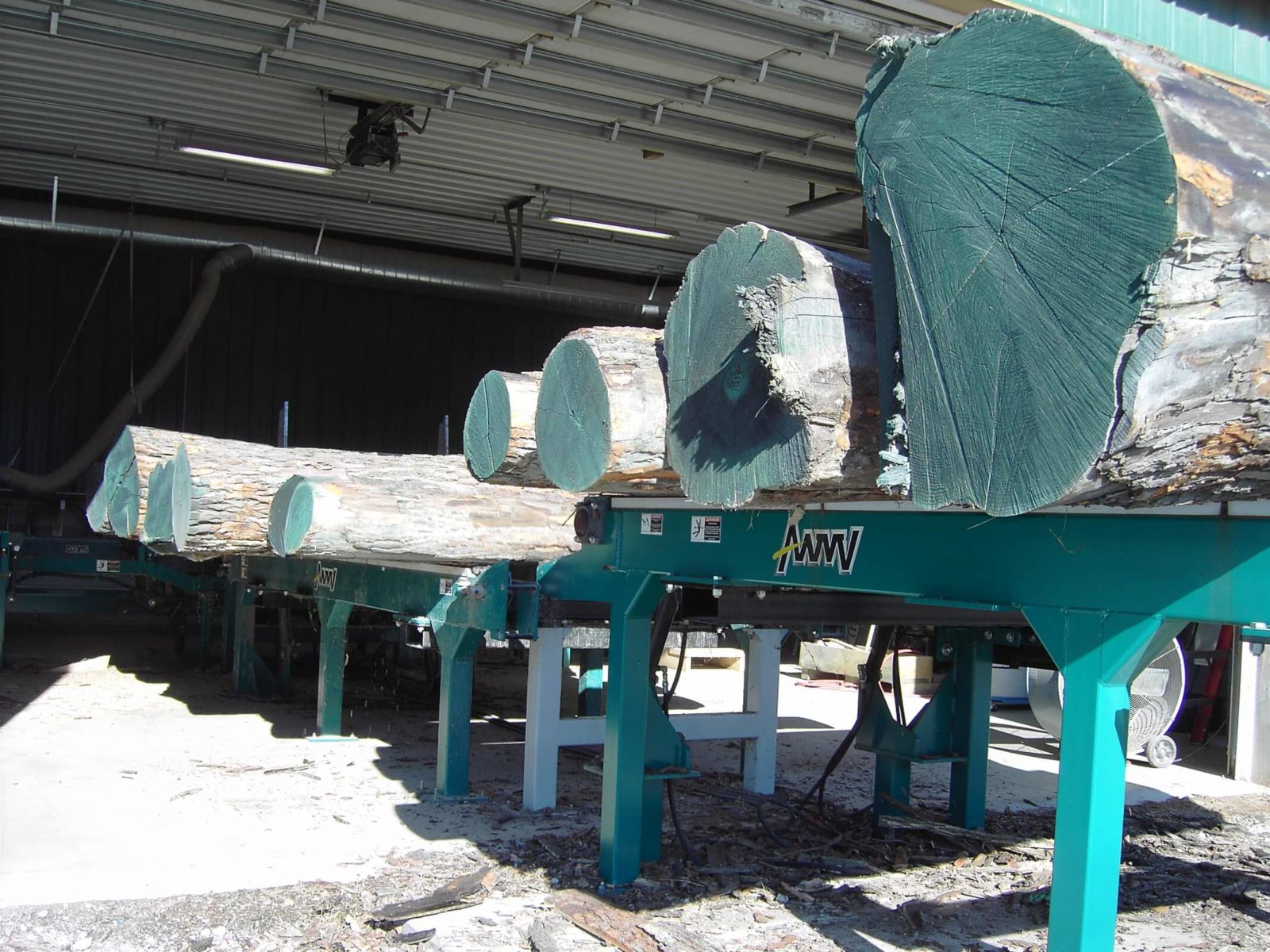

Custom Sawing Your Logs (if applicable) |
.50 bf |
|
|
Custom Kiln Drying Your Lumber (if applicable) |
.50 bf |
|
|
Custom T&G Random Widths |
1.00 bf |
|
|
Total Manufacturing Costs |
2.00 bf |
|
|
Total Cost ÷ Estimated Net Yield = Avg. SF Cost (from above table) |
580 net yield |
|
| Cost of Manufacturing Processes | Unit Cost | x 1,000 bf |
|---|---|---|
|
Optional End Matching (Tongue & Grooved Plank Ends) |
.50 bf |
|
|
Total Cost ÷ Estimated Net Yield = Avg. SF Cost (45% Total Waste Factor) |
550 net yield |
|
Estimated Waste Factors are calculated utilizing random width kiln dried lumber. Fixed widths can double the waste factor depending on the rough size of your lumber and desired widths of your finished product. You will be charged only for the board footage processed and provided with a net width tally of your finished products.
